Name: Aptitude Remote-Controlled R/F System with Canon CXDI-RF
Brand: AMRAD Medical

Question 1

How much does the Aptitude Remote-Controlled R/F System with Canon CXDI-RF cost?

Accepted Answer

Pricing for the Aptitude Remote-Controlled R/F System with Canon CXDI-RF depends on your configuration, such as quantity, compatibility and shipping. Request a quote online or call 561-441-2157 for current pricing and availability.

Question 2

Is the Aptitude Remote-Controlled R/F System with Canon CXDI-RF compatible with my system?

Accepted Answer

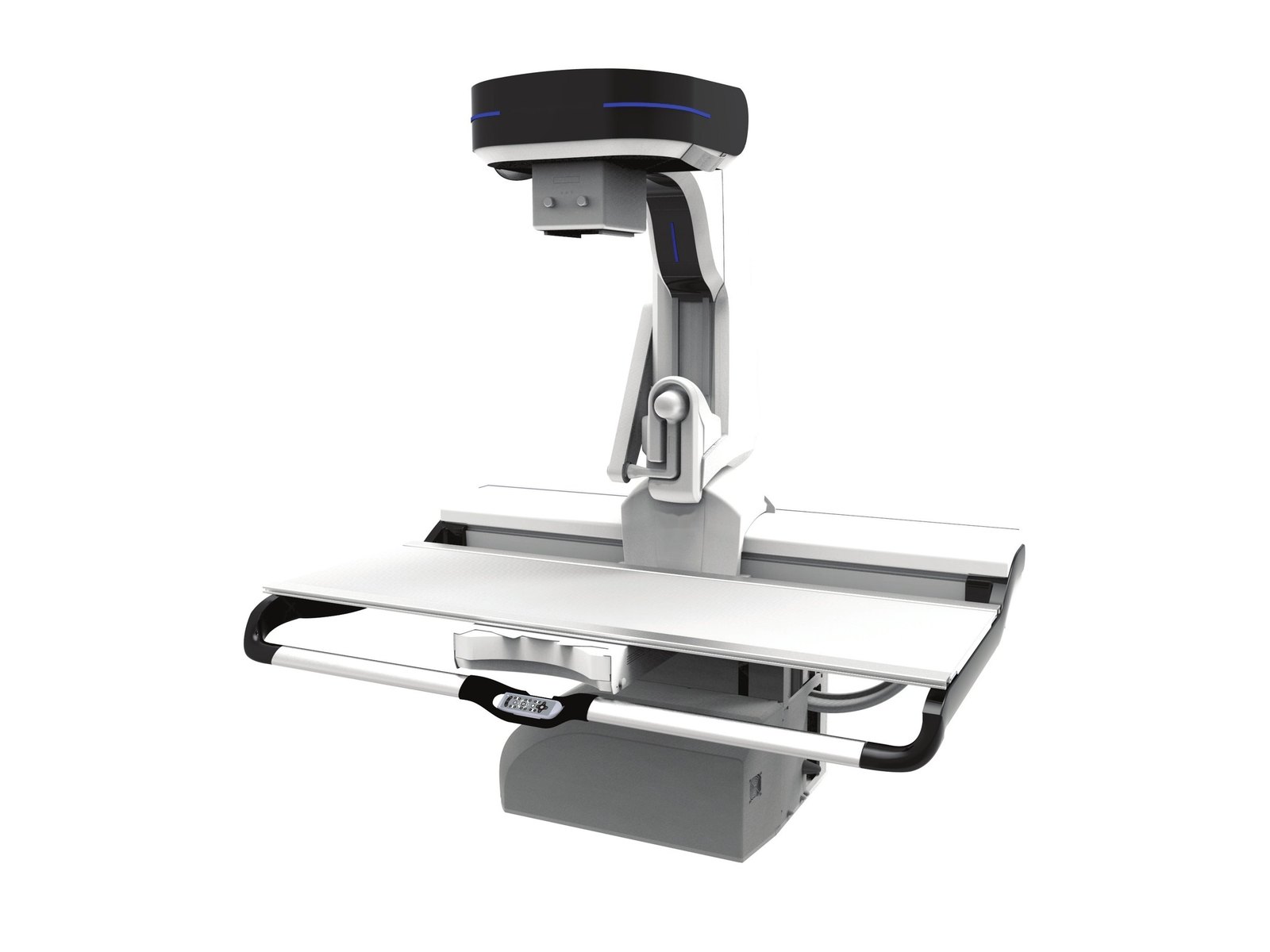

This remote-controlled R/F room is built around a Canon 17 x 17 in. detector that handles both fluoroscopy and radiography. The flat tabletop makes stretcher transfers simple, the column angles with an automatic collimator and built-in DAP meter, and the electronics sit inside the base instead of in separate cabinets.

Bariatric capacity: Carbon-fiber tabletop rated for 507 lb (230 kg) with no movement limits, up to 683 lb (310 kg) with some limits.
Full coverage: Motorized height from 25 in. to 36.6 in., tilt +90° / -25°, and 53.1 in. of longitudinal travel.

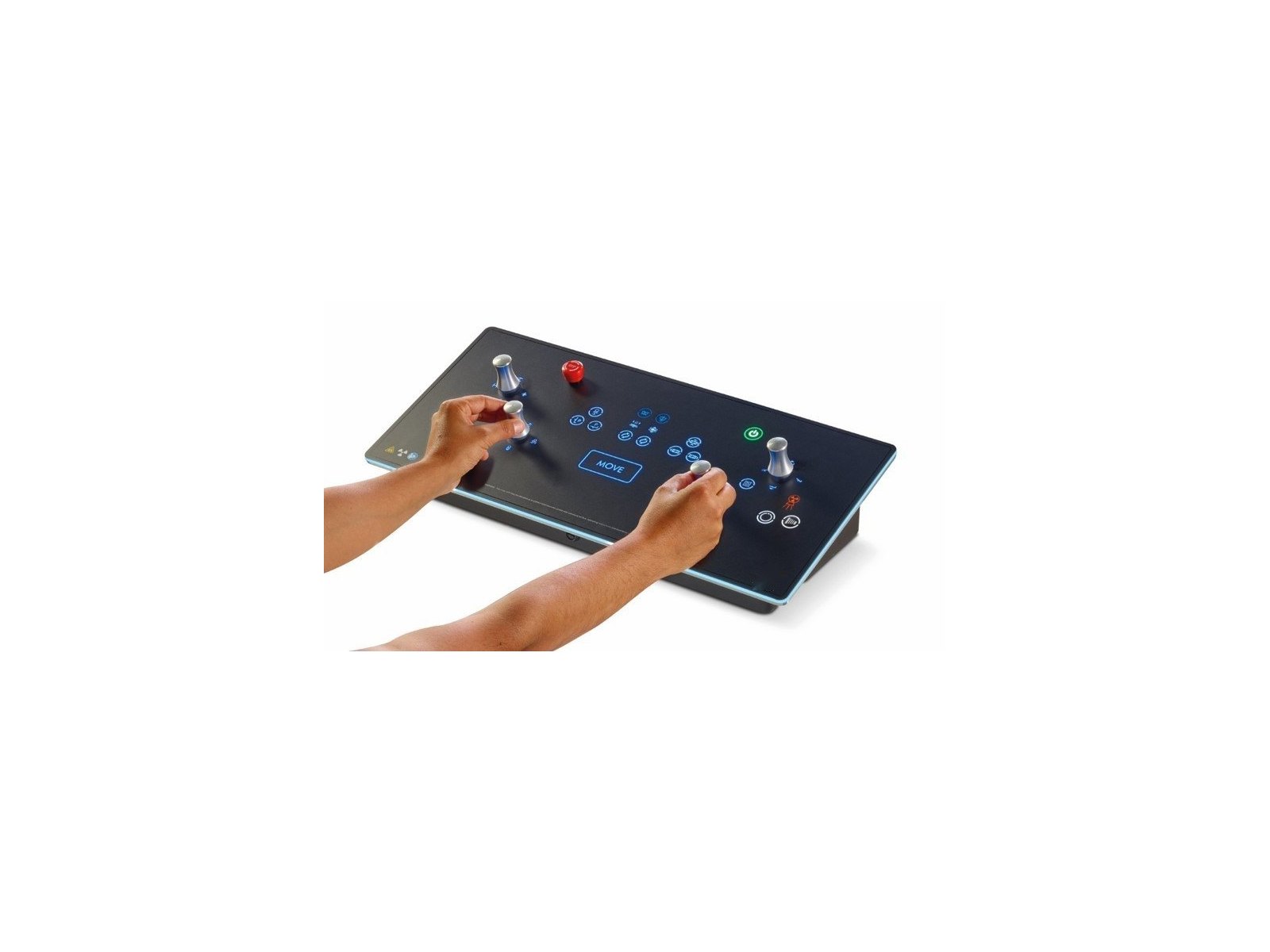

Auto-positioning: Pick a protocol and press MOVE: the table, column angle, SID, collimation and filters set themselves.
Dose reduction: Protocol-based collimation and filters, plus a patient camera for positioning without radiation.
One detector, two modes: The Canon CXDI-RF Wireless B1 does fluoroscopy and radiography and lifts out of the bucky for table-free exams.

Manufactured by AMRAD Medical (Summit Industries, LLC). Sold, installed and serviced by Sharp Imaging Solutions, an independent dealer.

Sharp Imaging Solutions supplies, installs and services this system, including site planning, Canon CXDI digital radiography, DICOM and PACS setup, and technologist training. Download the brochure for full specifications, then request a quote or call 561-441-2157.

Tabletop	88.5 x 31.9 in (225 x 81 cm); 0.55 mm Al eq. max
Height	25 in. (64 cm) to 36.6 in. (93 cm), motorized
Tilt	+90° / -25°, motorized at 6°/s
Lateral travel	±7 in. (18 cm)
Longitudinal travel	+47.2 in. / -23.6 in. tabletop; 53.1 in. (135 cm) total coverage
Patient weight	507 lb (230 kg); up to 683 lb (310 kg) with some limits
Grids	Removable carbon fiber 10:1, focus 49.2 in. and 70.9 in.
Column angulation	±40°, motorized
SID	43.3 in. (110 cm) to 70.9 in. (180 cm), motorized
Tube rotation	±180°, electrically assisted, stops every 90°
Compression	Up to 200 N, retractable, with safety interlocks
Collimator	Automatic, four pairs of shutters and two pre-shutter pairs, LED light and laser, programmable Cu/Al filters
X-ray tube	A 292 tube in B-147 housing (standard); 0.6 / 1.2 mm focal spots, 400 kHU anode, 9,500 rpm
Power	65 kW standard, 80 kW optional
Radiography	40 to 150 kV; 10 to 650 mA; 1 ms to 10 s; 0.1 to 500 mAs
Fluoroscopy	40 to 120 kV; 0.5 to 5 mA (low dose), up to 7 mA
