Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI

Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI specifications

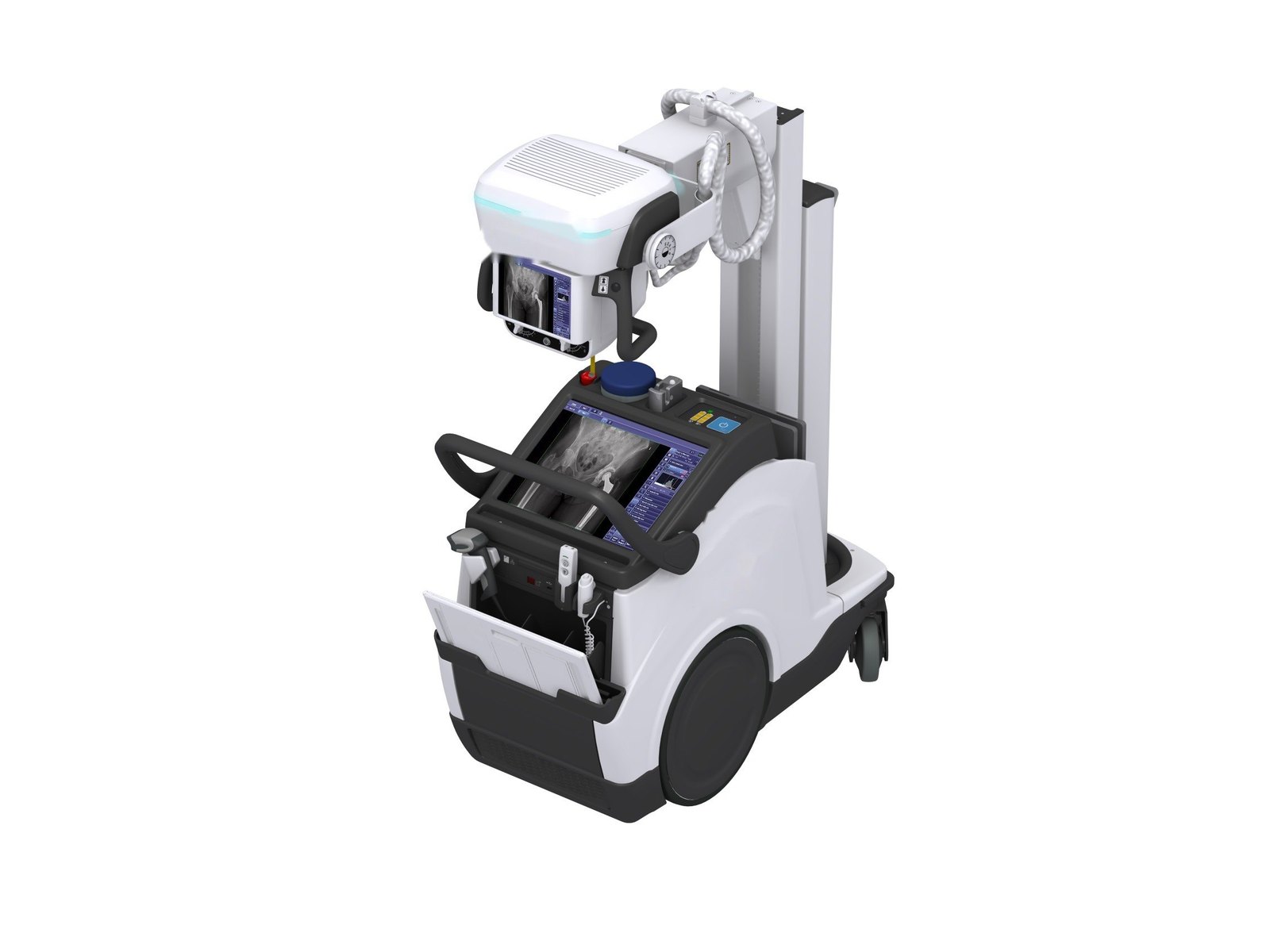

Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI

AMRAD Medical · X-ray systems

This mobile DR unit pairs a 40 kW high-frequency generator with Canon CXDI wireless detectors. Technologists review images on a 19-in. color touchscreen and can check positioning and adjust technique at the bedside on a second 8.4-in. screen on the tube head.

  • Up to 800 exposures per charge: Batteries are topped up by energy captured during braking, so the unit works longer between charges.
  • Easy to drive: Motor-assisted drive with a capacitive-touch handle for one-handed movement at up to 3.4 mph, and independent wheel control for fine positioning.
  • Compact: Folds to 50.7 in. H x 48 in. W x 21.2 in. D for narrow aisles and patient rooms, with a clear view during transport.

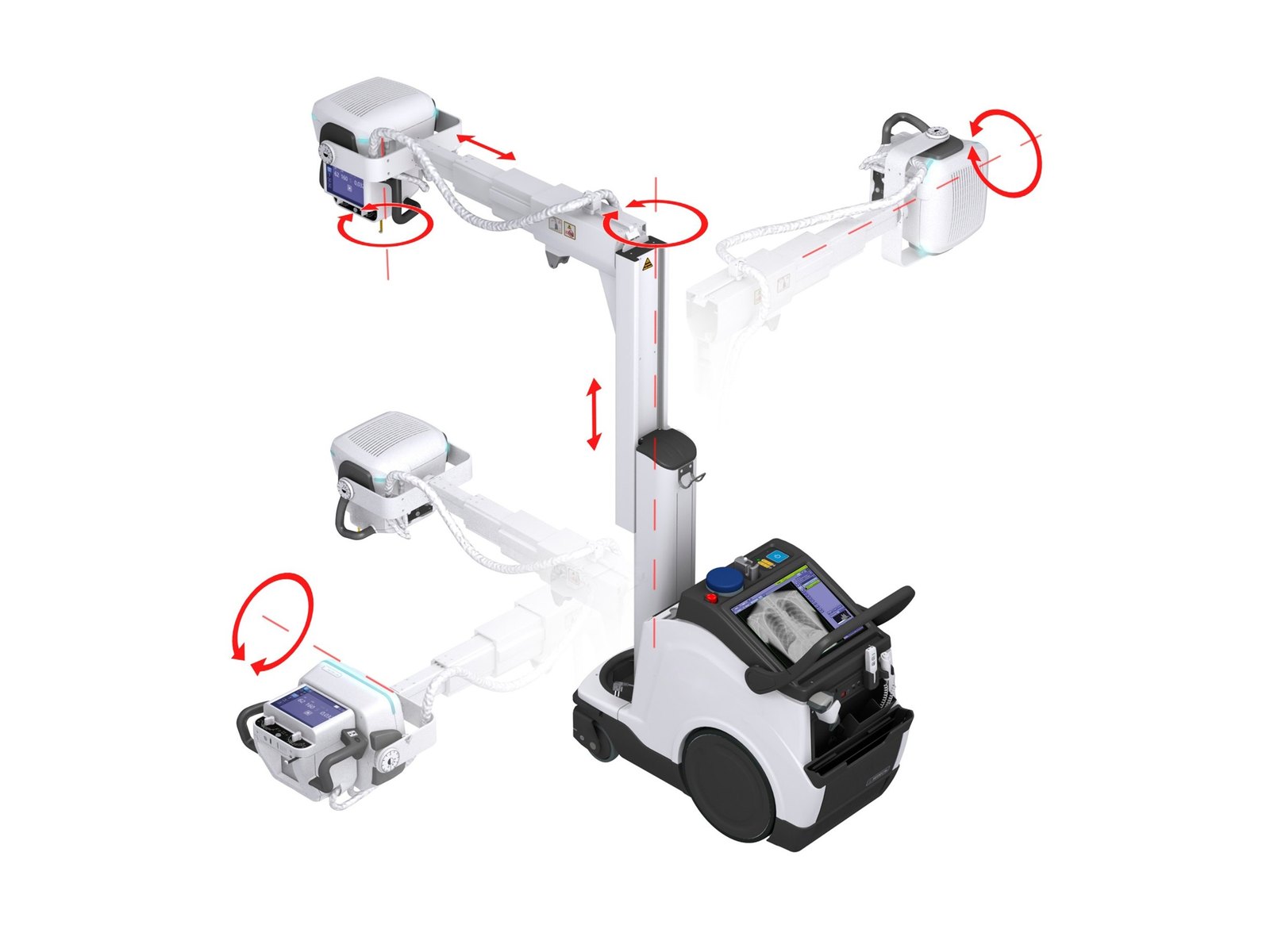

  • 4-step telescopic arm: Reach from 24.8 in. to 48 in., with column rotation of ±317° and SID up to 79.5 in.
  • Safety: Emergency off switch with manual movement, two-step hand switch with collimator lamp button, optional anti-collision sensors.

Manufactured by AMRAD Medical (Summit Industries, LLC). Sold, installed and serviced by Sharp Imaging Solutions, an independent dealer.

Sharp Imaging Solutions supplies, installs and services this system, including site planning, Canon CXDI digital radiography, DICOM and PACS setup, and technologist training. Download the brochure for full specifications, then request a quote or call 561-441-2157.

Brochure (PDF)

Price on request

Request a quoteCall 561-441-2157

Purchases and quotes are subject to our Terms and Conditions.

Available from Sharp Imaging Solutions, with installation and service support.

Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI specifications

kVp range40 to 150 kVp in 1 kVp steps
mA range10 to 500 mA in 18 steps
mAs range0.1 to 500 mAs in 38 steps
Power0.4 kW minimum; 40 kW maximum (IEC, 0.1 s, 100 kV)
DesignConstant-potential monoblock, no high-voltage cables, closed-loop kV, mA and filament control
ExposuresMore than 800 (80 kV, 400 mA, 5 ms)
StandbyMore than 11 hours
DrivingMore than 25 km at 3.4 mph
Charging80% in 4 hours, 100% in 8 hours; exposures possible while plugged in
Energy storage5,760 Wh; 15 Ah per battery
Telescopic arm24.8 in. (63 cm) to 48 in. (122 cm)
SIDUp to 79.5 in. (202 cm); focal spot to floor under 20.8 in. (53 cm)
RotationsColumn ±317°; head ±180° around arm and -30° to +90°; collimator ±90°
CXDI-803C11 x 14 in, 4.6 lb (2.1 kg), 1952 x 2496 pixels
CXDI-703C14 x 17 in, 6.4 lb (2.9 kg), 2496 x 3040 pixels
CXDI-403C17 x 17 in, 7.7 lb (3.5 kg), 3040 x 3040 pixels

Specifications from the manufacturer and subject to change. See the PDF above for full details and footnotes.

Questions about the Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI

How much does the Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI cost?

Pricing for the Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI depends on your configuration, such as quantity, compatibility and shipping. Request a quote online or call 561-441-2157 for current pricing and availability.

Is the Odyssey+ 40 kW Mobile DR X-ray System with Canon CXDI compatible with my system?

This mobile DR unit pairs a 40 kW high-frequency generator with Canon CXDI wireless detectors. Technologists review images on a 19-in. color touchscreen and can check positioning and adjust technique at the bedside on a second 8.4-in. screen on the tube head. Up to 800 exposures per charge: Batteries are topped up by energy captured during braking, so the unit works longer between charges. Easy to drive: Motor-assisted drive with a capacitive-touch handle for one-handed movement at up to 3.4 mph, and independent wheel control for fine positioning. Compact: Folds to 50.7 in. H x 48 in. W x 21.2 in. D for narrow aisles and patient rooms, with a clear view during transport. 4-step telescopic arm: Reach from 24.8 in. to 48 in., with column rotation of ±317° and SID up to 79.5 in. Safety: Emergency off switch with manual movement, two-step hand switch with collimator lamp button, optional anti-collision sensors. Manufactured by AMRAD Medical (Summit Industries, LLC). Sold, installed and serviced by Sharp Imaging Solutions, an independent dealer. Send us your system or detector model and we will confirm compatibility and availability.
