Agility All-in-One Mobile C-Arm

Agility All-in-One Mobile C-Arm specifications

Agility All-in-One Mobile C-Arm

AMRAD Medical · X-ray systems

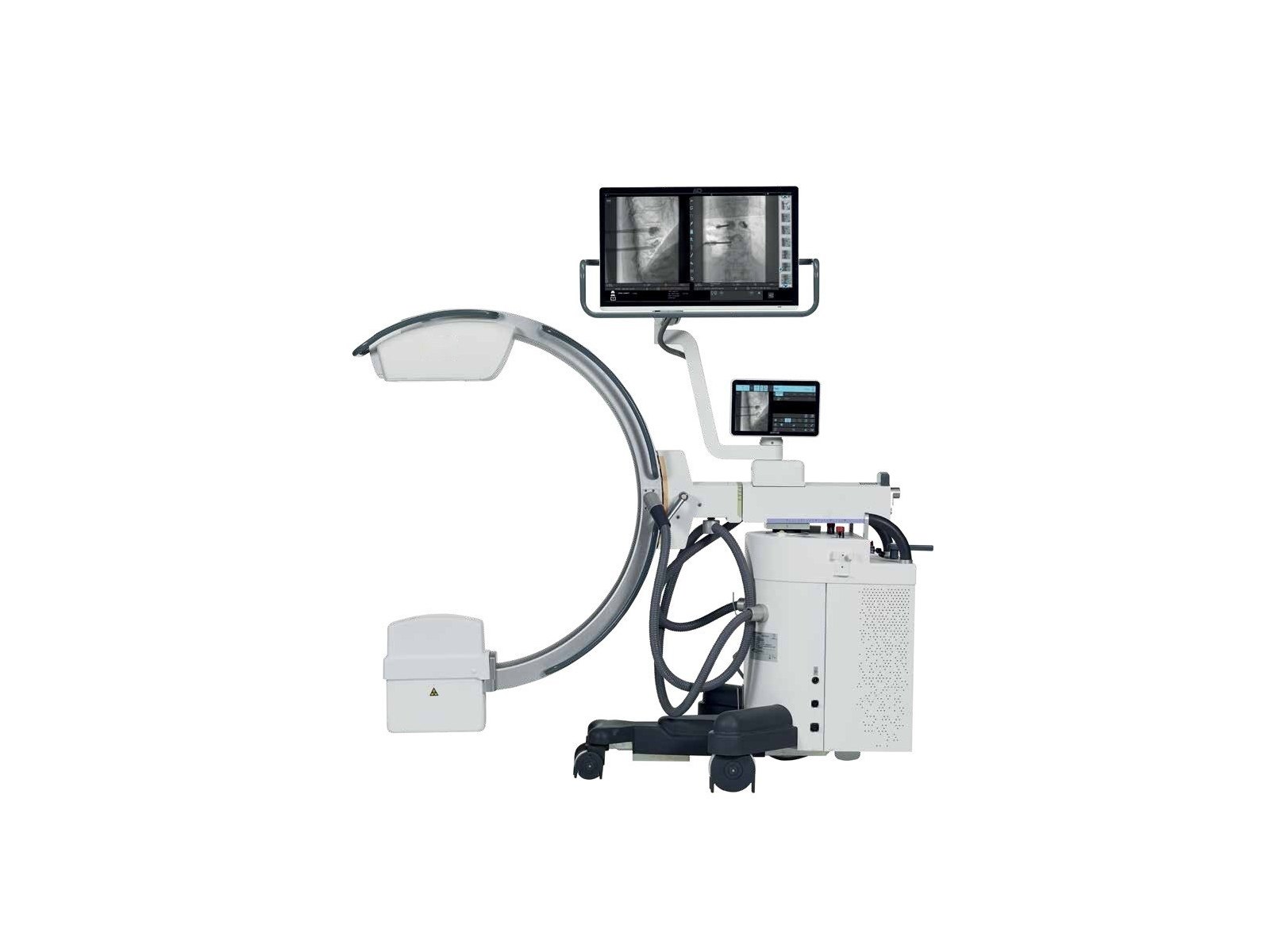

A single-cabinet flat-panel C-arm that moves easily between rooms. Images appear on a 27-in. 4 MP monitor mounted on an adjustable arm, so the surgical team can see them from anywhere around the table.

  • Flat panel detector: Acquisition areas from 21 x 21 cm to 30 x 30 cm, with a removable anti-scatter grid for low-dose work.
  • Pulsed, modulated power: Pulsed output adjusts to the procedure, keeping dose low without giving up image quality.
  • Easy access: The touch console swivels, so it can be used from any side of the C-arm while the live image stays in view.
  • Remote display: Wi-Fi video to an optional wireless monitor cart, ceiling suspension or wall monitors.

Manufactured by AMRAD Medical (Summit Industries, LLC). Sold, installed and serviced by Sharp Imaging Solutions, an independent dealer.

Sharp Imaging Solutions supplies, installs and services this system, including site planning, Canon CXDI digital radiography, DICOM and PACS setup, and technologist training. Download the brochure for full specifications, then request a quote or call 561-441-2157.

Brochure (PDF)

Price on request

Request a quoteCall 561-441-2157

Purchases and quotes are subject to our Terms and Conditions.

Available from Sharp Imaging Solutions, with installation and service support.

Agility All-in-One Mobile C-Arm specifications

Orbital rotation160° (+65° to -95°)
Angular rotationMore than ±210°
Vertical travel18 in. (450 mm)
Main monitor27 in., 4 MP, live and stored images side by side; height, angle and tilt adjustable
ConsoleHigh-brightness touchscreen for selecting, editing, sending and zooming images

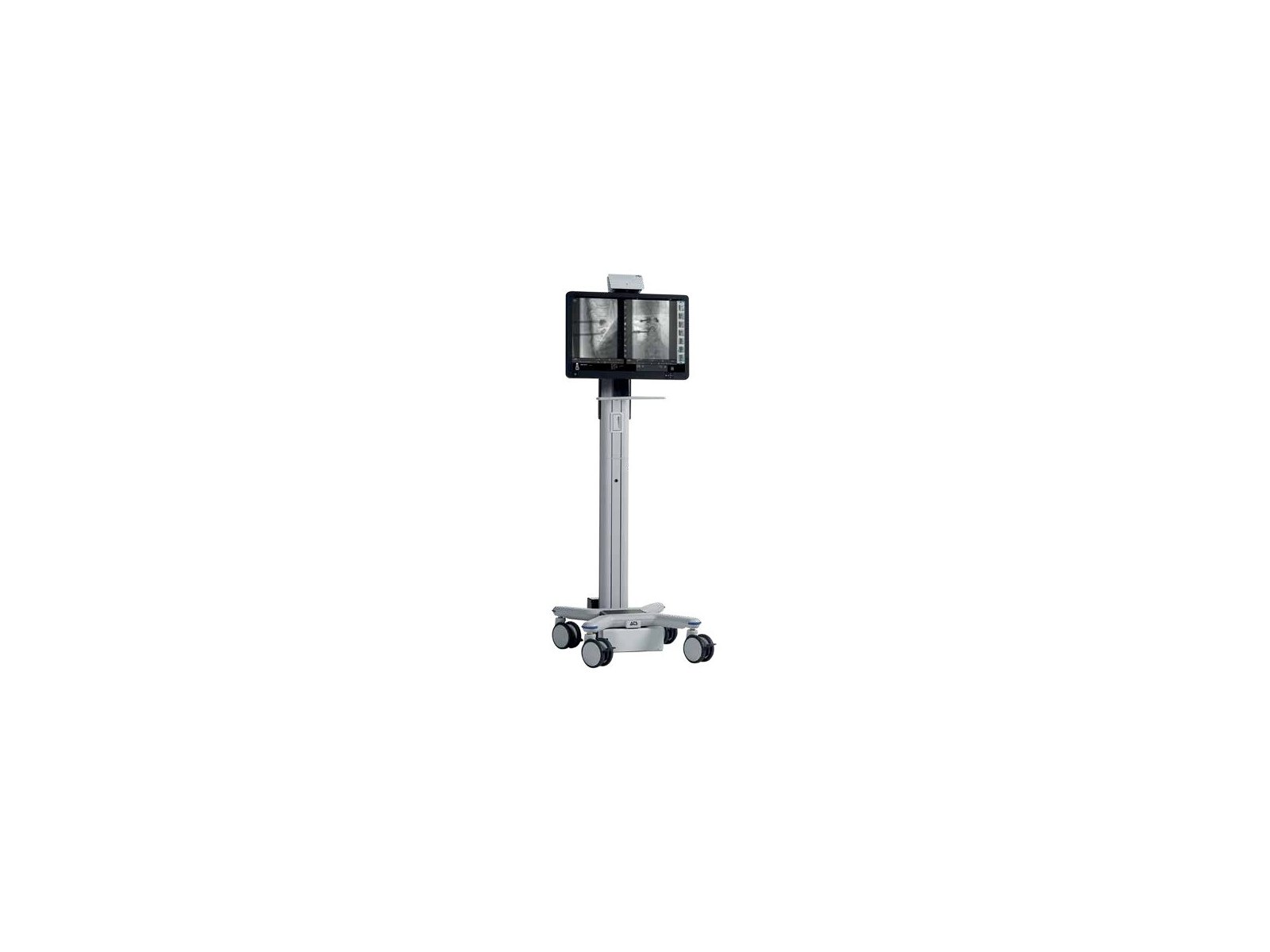

Wireless monitor cartOptional; lithium-ion battery, duplicates the main monitor

Specifications from the manufacturer and subject to change. See the PDF above for full details and footnotes.

Questions about the Agility All-in-One Mobile C-Arm

How much does the Agility All-in-One Mobile C-Arm cost?

Pricing for the Agility All-in-One Mobile C-Arm depends on your configuration, such as quantity, compatibility and shipping. Request a quote online or call 561-441-2157 for current pricing and availability.

Is the Agility All-in-One Mobile C-Arm compatible with my system?

A single-cabinet flat-panel C-arm that moves easily between rooms. Images appear on a 27-in. 4 MP monitor mounted on an adjustable arm, so the surgical team can see them from anywhere around the table. Flat panel detector: Acquisition areas from 21 x 21 cm to 30 x 30 cm, with a removable anti-scatter grid for low-dose work. Pulsed, modulated power: Pulsed output adjusts to the procedure, keeping dose low without giving up image quality. Easy access: The touch console swivels, so it can be used from any side of the C-arm while the live image stays in view. Remote display: Wi-Fi video to an optional wireless monitor cart, ceiling suspension or wall monitors. Manufactured by AMRAD Medical (Summit Industries, LLC). Sold, installed and serviced by Sharp Imaging Solutions, an independent dealer. Send us your system or detector model and we will confirm compatibility and availability.
