Canon CXDI-703C Wireless DR Detector

Name: Canon CXDI-703C Wireless DR Detector
Brand: Canon
SKU: 5680C002

Canon · DR panels · Part no. 5680C002

CXDI-703C 14" x 17" Canon wireless DR with two batteries.

The Canon CXDI-703C Wireless DR Detector is a 14 x 17 in wireless flat-panel digital radiography (DR) detector with a cesium iodide scintillator, 140 µm pixels and an image matrix of 2496 x 3040 pixels. It weighs 6.4 lb (2.9 kg) and is rated IP55 for dust and water resistance. Sharp Imaging Solutions, an authorized Canon dealer, supplies the CXDI-703C as a stand-alone or replacement detector, or as a complete film or CR to DR upgrade with workstation, CXDI NE software, installation and service.

Spec sheet (PDF)Canon brochure (PDF)

Price on request

Request a quote Call 561-441-2157

Purchases and quotes are subject to our Terms and Conditions.

Sharp Imaging Solutions is an authorized Canon dealer offering sales, installation, upgrades and service.

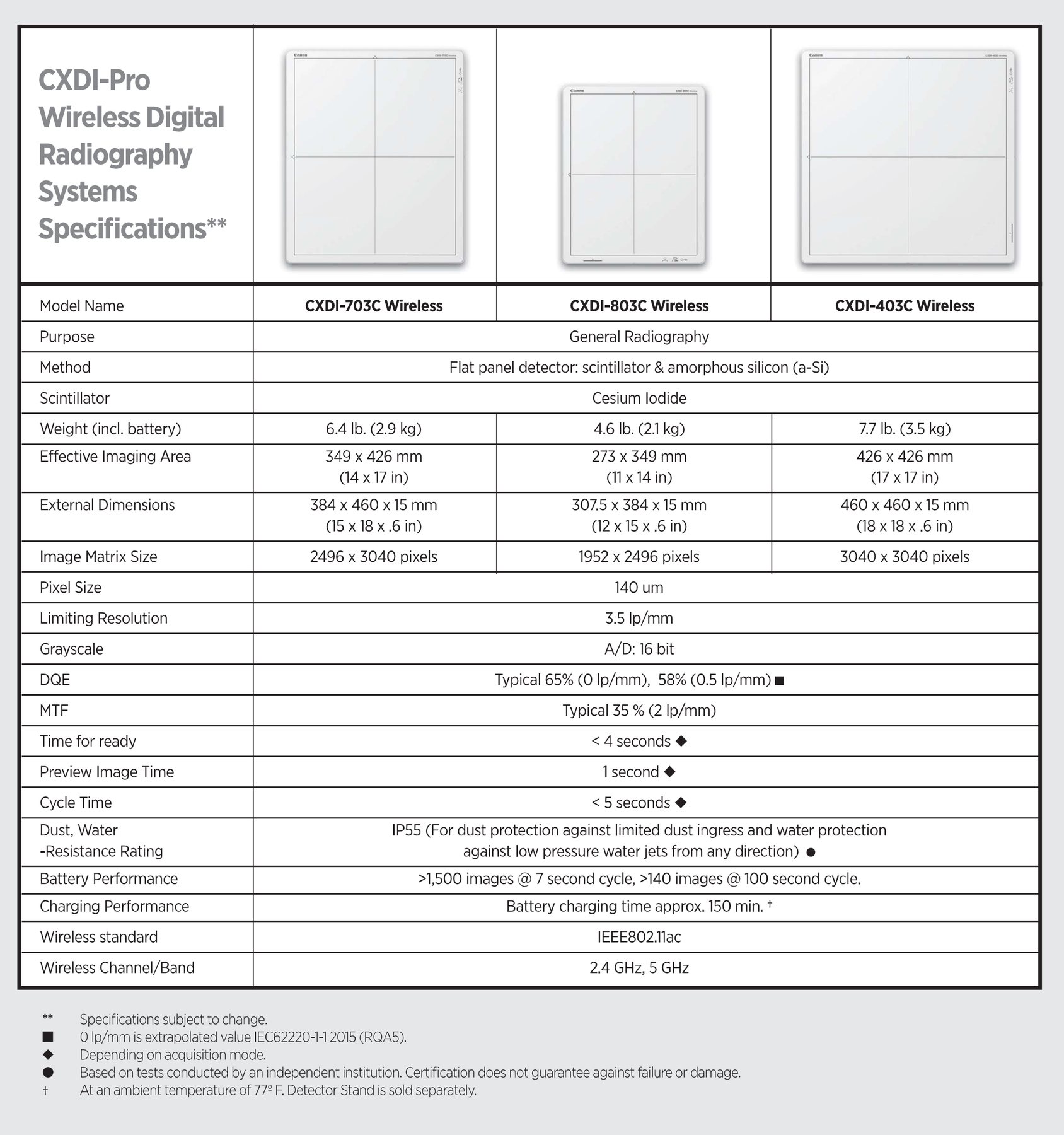

CXDI-703C specifications

Detector type	Wireless flat-panel detector (CXDI-Pro)
Effective imaging area	14 x 17 in (349 x 426 mm)
Image matrix	2496 x 3040 pixels
Pixel size	140 µm
Limiting resolution	3.5 lp/mm
Scintillator	Cesium iodide (CsI), amorphous silicon (a-Si)
DQE	Typical 65% (0 lp/mm), 58% (0.5 lp/mm)
MTF	Typical 35% (2 lp/mm)
Grayscale	16-bit A/D
Time for ready	Under 4 seconds
Preview image time	1 second
Cycle time	Under 5 seconds
Weight (incl. battery)	6.4 lb (2.9 kg)
External dimensions	15 x 18 x 0.6 in (384 x 460 x 15 mm)
Dust and water resistance	IP55
Wireless	IEEE 802.11ac, 2.4 GHz and 5 GHz
Battery performance	Over 1,500 images at a 7-second cycle
Charging time	Approx. 150 minutes

Specifications from the manufacturer and subject to change. See the PDF above for full details and footnotes.

Questions about the CXDI-703C

How much does the CXDI-703C cost?

Pricing for the CXDI-703C depends on your configuration, such as batteries, charger, workstation, software and installation. Request a quote online or call 561-441-2157 for current pricing and availability.

Can the CXDI-703C upgrade my existing X-ray room to digital?

Yes. The CXDI-703C can convert a film or CR X-ray room to digital radiography. We review your X-ray generator and room, then supply the detector, generator interface, acquisition workstation and Canon CXDI NE software, and install and service the system.

Do you install and service Canon CXDI detectors?

Yes. Sharp Imaging Solutions is an authorized Canon dealer. We install, configure and service Canon CXDI wireless and fixed detectors for medical, chiropractic and veterinary practices.
