Canon CXDI-420C Wireless DR Detector

Name: Canon CXDI-420C Wireless DR Detector
Brand: Canon
SKU: 5685C002

Canon · DR panels · Part no. 5685C002

CXDI-420C 17" x 17" Canon wireless DR with two batteries.

The Canon CXDI-420C Wireless DR Detector is a 17 x 17 in wireless flat-panel digital radiography (DR) detector with a cesium iodide scintillator, 125 µm pixels and an image matrix of 3408 x 3408 pixels. It weighs 6.0 lb (2.7 kg) and is rated IP57 for dust and water resistance. Sharp Imaging Solutions, an authorized Canon dealer, supplies the CXDI-420C as a stand-alone or replacement detector, or as a complete film or CR to DR upgrade with workstation, CXDI NE software, installation and service.

Spec sheet (PDF)Canon brochure (PDF)

Price on request

Request a quote Call 561-441-2157

Purchases and quotes are subject to our Terms and Conditions.

Sharp Imaging Solutions is an authorized Canon dealer offering sales, installation, upgrades and service.

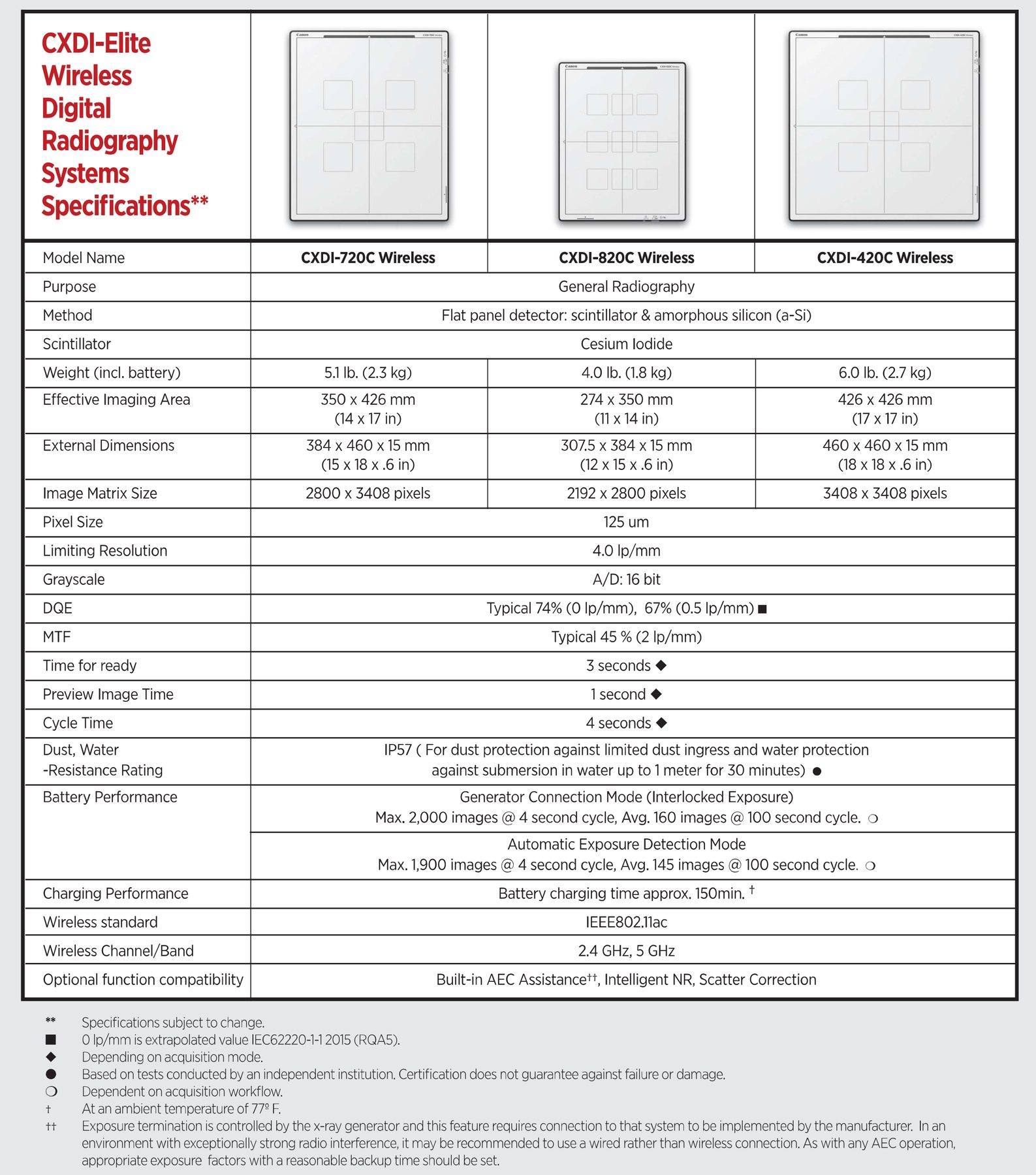

CXDI-420C specifications

Detector type	Wireless flat-panel detector (CXDI-Elite)
Effective imaging area	17 x 17 in (426 x 426 mm)
Image matrix	3408 x 3408 pixels
Pixel size	125 µm
Limiting resolution	4.0 lp/mm
Scintillator	Cesium iodide (CsI), amorphous silicon (a-Si)
DQE	Typical 74% (0 lp/mm), 67% (0.5 lp/mm)
MTF	Typical 45% (2 lp/mm)
Grayscale	16-bit A/D
Time for ready	3 seconds
Preview image time	1 second
Cycle time	4 seconds
Weight (incl. battery)	6.0 lb (2.7 kg)
External dimensions	18 x 18 x 0.6 in (460 x 460 x 15 mm)
Dust and water resistance	IP57
Wireless	IEEE 802.11ac, 2.4 GHz and 5 GHz
Battery performance	Up to 2,000 images at a 4-second cycle (generator connection mode)
Charging time	Approx. 150 minutes
Optional functions	Built-in AEC Assistance, Intelligent NR, Scatter Correction

Specifications from the manufacturer and subject to change. See the PDF above for full details and footnotes.

Questions about the CXDI-420C

How much does the CXDI-420C cost?

Pricing for the CXDI-420C depends on your configuration, such as batteries, charger, workstation, software and installation. Request a quote online or call 561-441-2157 for current pricing and availability.

Can the CXDI-420C upgrade my existing X-ray room to digital?

Yes. The CXDI-420C can convert a film or CR X-ray room to digital radiography. We review your X-ray generator and room, then supply the detector, generator interface, acquisition workstation and Canon CXDI NE software, and install and service the system.

Do you install and service Canon CXDI detectors?

Yes. Sharp Imaging Solutions is an authorized Canon dealer. We install, configure and service Canon CXDI wireless and fixed detectors for medical, chiropractic and veterinary practices.
