Canon CXDI-410C Wireless DR Detector

Name: Canon CXDI-410C Wireless DR Detector
Brand: Canon
SKU: 1623C002

Canon · DR panels · Part no. 1623C002

CXDI-410C 17" x 17" Canon wireless DR with batteries.

The Canon CXDI-410C Wireless DR Detector is a 17 x 17 in wireless flat-panel digital radiography (DR) detector with a cesium iodide scintillator, 125 µm pixels and an image matrix of 3320 x 3408 pixels. It weighs approx. 6.17 lb and is rated IPX7 for dust and water resistance. Sharp Imaging Solutions, an authorized Canon dealer, supplies the CXDI-410C as a stand-alone or replacement detector, or as a complete film or CR to DR upgrade with workstation, CXDI NE software, installation and service.

Spec sheet (PDF)Canon brochure (PDF)

Price on request

Request a quote Call 561-441-2157

Purchases and quotes are subject to our Terms and Conditions.

Sharp Imaging Solutions is an authorized Canon dealer offering sales, installation, upgrades and service.

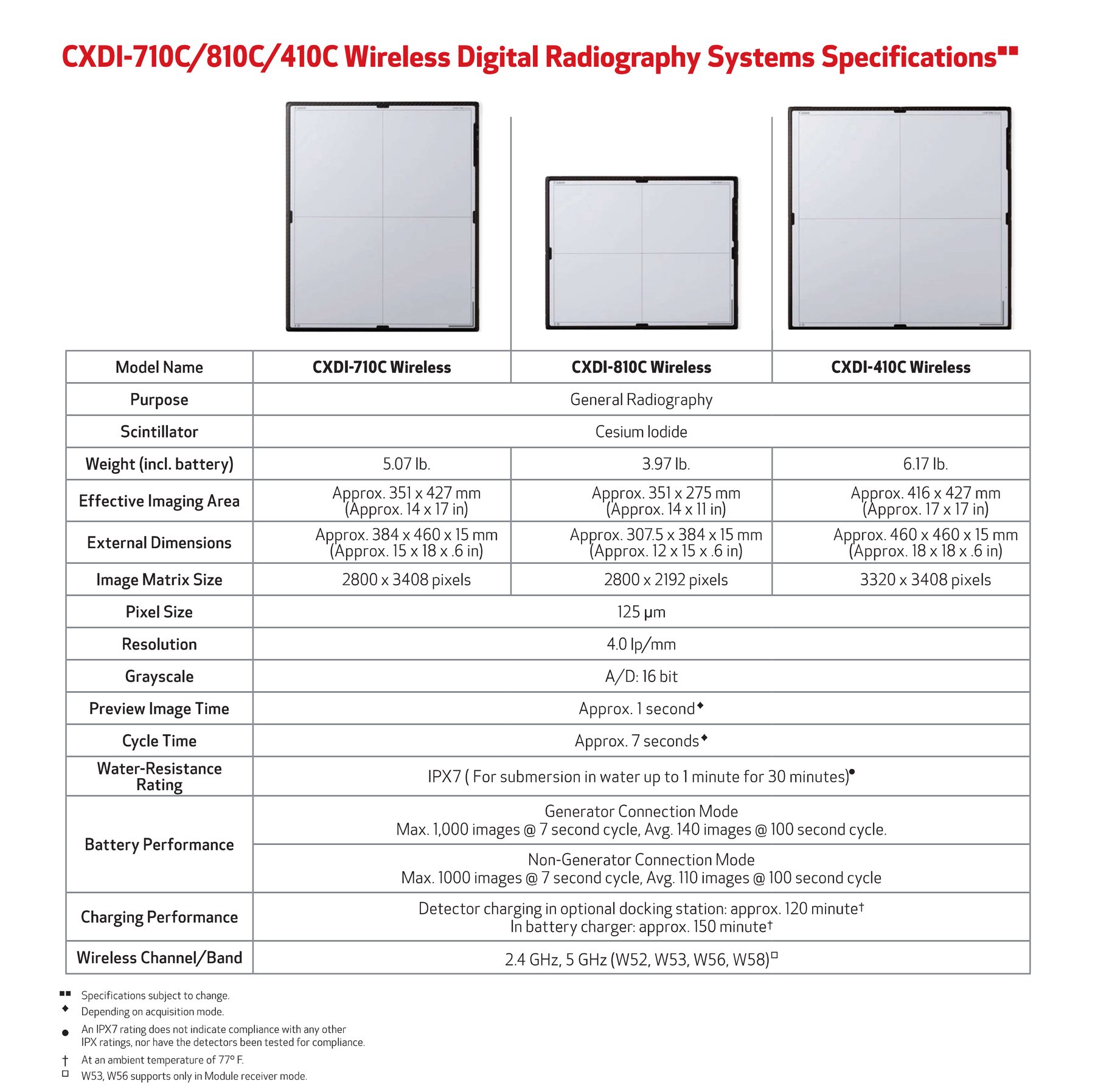

CXDI-410C specifications

Detector type	Wireless flat-panel detector
Effective imaging area	17 x 17 in (approx. 416 x 427 mm)
Image matrix	3320 x 3408 pixels
Pixel size	125 µm
Resolution	4.0 lp/mm
Scintillator	Cesium iodide (CsI)
Grayscale	16-bit A/D
Preview image time	Approx. 1 second
Cycle time	Approx. 7 seconds
Weight (incl. battery)	Approx. 6.17 lb
External dimensions	Approx. 18 x 18 x 0.6 in (460 x 460 x 15 mm)
Dust and water resistance	IPX7
Wireless	2.4 GHz and 5 GHz
Battery performance	Up to 1,000 images at a 7-second cycle
Charging time	Approx. 150 minutes in battery charger; approx. 120 minutes in optional docking station

Specifications from the manufacturer and subject to change. See the PDF above for full details and footnotes.

Questions about the CXDI-410C

How much does the CXDI-410C cost?

Pricing for the CXDI-410C depends on your configuration, such as batteries, charger, workstation, software and installation. Request a quote online or call 561-441-2157 for current pricing and availability.

Can the CXDI-410C upgrade my existing X-ray room to digital?

Yes. The CXDI-410C can convert a film or CR X-ray room to digital radiography. We review your X-ray generator and room, then supply the detector, generator interface, acquisition workstation and Canon CXDI NE software, and install and service the system.

Do you install and service Canon CXDI detectors?

Yes. Sharp Imaging Solutions is an authorized Canon dealer. We install, configure and service Canon CXDI wireless and fixed detectors for medical, chiropractic and veterinary practices.
